With the increasing popularity of smart products, voice-controlled lighting has become a common occurrence. Some lighting systems utilize professional dimming and color adjustment systems to achieve flexible control over brightness. Currently, the mainstream electronic component for dimming is the Triac. In this article, we will delve into what a Triac dimmer is.
What is TRIAC
A Triac is a type of semiconductor device that belongs to the family of thyristors. It is a three-terminal electronic component that can control the flow of alternating current (AC) power. The term "Triac" is derived from "Triode for Alternating Current."
The Triac is designed to control AC power by acting as an electronic switch. It can conduct current in both directions, allowing it to control the power flow during both halves of the AC waveform. The Triac is commonly used in applications where phase control of AC power is required, such as in dimmer switches for lighting control.
The Triac consists of two thyristors (usually silicon-controlled rectifiers or SCR) connected in parallel but in opposite directions. It has a control terminal called the gate, and two main terminals called MT1 (Main Terminal 1) and MT2 (Main Terminal 2). By applying a gate current or voltage pulse to the Triac, it can be triggered into conduction, allowing current to flow between the MT1 and MT2 terminals.
The triggering of the Triac is typically done by applying a voltage or current pulse at the gate terminal. Once triggered, the Triac remains conducting until the current flowing through it drops below a certain threshold, such as when the AC waveform crosses zero.
Triacs are widely used in various applications where AC power control is required, including lighting control, motor speed control, temperature control, and power regulation in home appliances and industrial equipment. Their ability to control AC power makes them a versatile component for switching and dimming applications.
What is triac dimmer
A Triac dimmer is a type of dimming device that utilizes a Triac (Triode for Alternating Current) to control the brightness of lighting fixtures or other electrical devices. It is commonly used in residential, commercial, and industrial applications to adjust the intensity of lighting according to desired levels.
Triac dimmers are specifically designed for AC power control and are often employed in applications where phase control of the AC waveform is required. They allow users to adjust the brightness of incandescent lamps, halogen bulbs, and certain types of dimmable LED and CFL (compact fluorescent lamp) bulbs.
The Triac dimmer typically consists of a Triac, control circuitry, and user interface components. The control circuitry processes user input, such as rotating a knob or sliding a lever, and generates control signals to adjust the conduction angle of the Triac. By altering the conduction angle, the Triac dimmer varies the amount of power delivered to the connected lighting load, resulting in a corresponding change in brightness.
When the Triac dimmer receives a control signal, it triggers the Triac to conduct during a specific portion of each AC cycle, effectively controlling the amount of power flowing to the lighting load. By adjusting the conduction angle, the Triac dimmer can achieve smooth and continuous dimming of the lights.
It's important to note that not all lighting fixtures are compatible with Triac dimmers. Some LED bulbs and electronic low-voltage transformers require specific dimmers compatible with their technology. Therefore, it's essential to check the compatibility between the Triac dimmer and the lighting load to ensure proper operation and avoid compatibility issues.
How Does a TRIAC Dimmer Work?
A Triac dimmer works by controlling the flow of alternating current (AC) to adjust the brightness of lighting fixtures or other electrical devices. It achieves this by utilizing a Triac (Triode for Alternating Current) semiconductor device, which acts as an electronic switch for AC power control.
Here's a step-by-step explanation of how a Triac dimmer works:
- AC Power Input: The Triac dimmer is connected to an AC power source, typically 120V or 240V AC.
- Triggering the Triac: The user adjusts the dimmer control, such as rotating a knob or sliding a lever. This input is processed by the dimmer's control circuitry.
- Generating Control Signals: The control circuitry generates control signals based on the user's input. These signals determine the timing and duration of the Triac's conduction during each AC cycle.
- Triggering the Gate: The control signals are sent to the gate terminal of the Triac. When the voltage or current at the gate exceeds the Triac's threshold level, it triggers the Triac into conduction.
- Conduction of the Triac: Once triggered, the Triac enters a conducting state, allowing current to flow through it. The Triac remains in this conducting state until the current drops below a specific threshold, typically when the AC waveform crosses zero.
- Controlling the Conduction Angle: The control signals from the dimmer's circuitry determine the conduction angle of the Triac. The conduction angle represents the portion of each AC cycle during which the Triac conducts. By adjusting the conduction angle, the dimmer controls the amount of power delivered to the connected load.
- Varying the Power Flow: As the Triac conducts, it allows current to flow to the connected lighting load. By altering the conduction angle, the Triac dimmer adjusts the amount of power delivered to the load, thereby controlling the brightness of the lights.
- Smooth Dimming: By continuously adjusting the conduction angle in response to user input, the Triac dimmer achieves smooth and continuous dimming of the lights, allowing for precise control over the brightness level.
It's important to note that while Triac dimmers are commonly used for incandescent lamps and certain types of dimmable LED and CFL bulbs, not all lighting fixtures are compatible. Some LED bulbs, electronic low-voltage transformers, and other specialized lighting technologies may require specific dimmers designed for their compatibility.
Advantage of triac dimmer
Wide Dimming Range: TRIAC dimming enables a wide range of dimming possibilities, allowing for significant brightness adjustments and enhancing the versatility of home living in different settings.
Fast Response Time: TRIAC dimming exhibits a fast response time, capable of completing dimming operations within milliseconds. This makes it suitable for applications where quick responsiveness is crucial, such as in cinemas.
Cost-Effective: Compared to other lighting dimming methods, TRIAC dimming offers a cost-effective solution. This is primarily due to its simple design and the use of inexpensive materials.
Stable Dimming Performance: TRIAC dimming provides excellent stability in dimming operations without the need for additional circuitry support. It delivers consistent dimming effects and demonstrates strong adaptability to fluctuations in power quality.
Disadvantages of triac dimmer
Larger Dimming Module Size, High Requirements for Electrical Box Space and Heat Dissipation: The dimming modules have a larger physical size, demanding significant space in electrical boxes and requiring efficient heat dissipation. Moreover, as the number of lighting circuits increases, more space is occupied.
Higher Wiring Costs: The cost of wiring for TRIAC dimming is relatively high.
Not Suitable for Current Mainstream Decentralized Lighting Designs (Considering the prevalence of LED low-voltage lighting sources): It is not suitable for contemporary mainstream lighting designs that employ decentralized lighting control, especially with the widespread use of LED low-voltage lighting sources.
APPLICATIONS OF TRIAC DIMMING
Triac dimming is commonly used in residential, commercial, and hospitality settings to control lighting levels. It finds applications in homes, offices, restaurants, theaters, art galleries, outdoor lighting, and more. Triac dimming allows for adjustable lighting to create different moods, enhance ambiance, save energy, and highlight specific areas or objects.
the points to consider when using a TRIAC dimmer:
1 Operating environment factors are crucial influencing factors for such dimming devices. Before purchasing and installing them, it is necessary to measure the installation environment of these devices and ensure that they meet the corresponding power requirements to fulfill daily needs.
2 Avoid installing the TRIAC dimmer in damp or direct sunlight areas. During the connection process, it is advisable to use the power cord provided by the original manufacturer to prevent potential equipment malfunctions caused by unstable current delivery.
3 When installing and operating such devices, it is important to consider future use and maintenance from a different perspective to ensure convenient operations in the long run.
4 During installation and use, it is essential to avoid heat sources and water sources in the vicinity of the dimmer. Proper anti-corrosion and moisture prevention measures should be taken. It is recommended for operators to thoroughly read the user manual before installation and use to fully understand the TRIAC dimmer model.
5 Regularly clean and maintain both the TRIAC dimmer and its operating and installation environment to ensure cleanliness and dust prevention measures. This will help optimize the performance of the dimmer.
6 If any abnormal phenomena or malfunctions occur while operating such dimming devices, it is crucial to promptly notify the manufacturer's maintenance personnel. It is strongly advised not to dismantle the dimming equipment for repair without proper authorization, as it may lead to further damage and render the dimmer unusable.
7 Based on the usage of these devices, develop effective maintenance plans and regularly utilize professional inspection equipment to conduct inspections for the dimming system's performance.

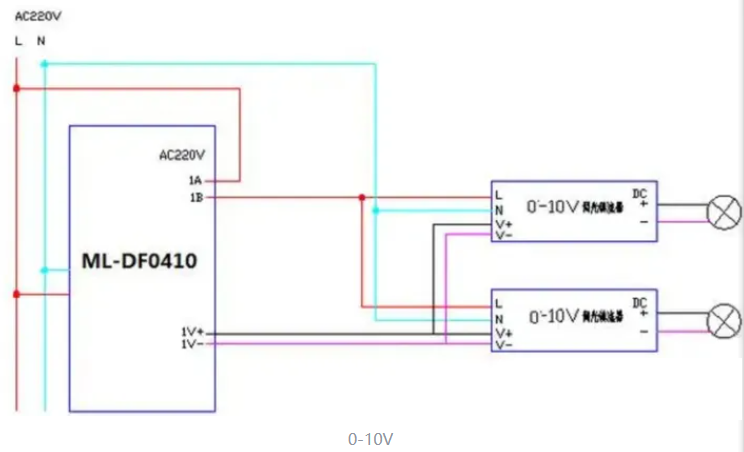

Other dimming method: 0/1-10V
Another common dimming method is the 0/1-10V dimming system, which includes two types: 0-10V and 1-10V.
Both types can control the average current flowing through LEDs by receiving analog signals in the range of 0/1-10V (based on the voltage magnitude of the signal), achieving the desired dimming effect.
This dimming method is primarily accomplished through PWM (Pulse Width Modulation) control. In the case of a 1-10V dimmer, when the dimming control is set to the minimum level of 1V, the output current will decrease proportionally to 10% of the power supply's maximum output. Conversely, when set to the maximum level of 10V, the output current will reach 100%, resulting in full brightness. It's important to note that 1-10V dimmers do not have a switch function, so they cannot completely turn off the lighting fixture.
Please note that the translation provided is a general interpretation and may be subject to slight variations based on context.
Advantages: It is a common dimming method known for its simplicity, good compatibility, high precision, and excellent dimming performance.
Disadvantages: It requires additional control wiring and controllers.
Other dimming method: PWM
Another common dimming method is PWM (Pulse Width Modulation) dimming. The principle of PWM dimming involves controlling the on/off states of the inverter circuit's switching devices to generate a series of pulses with equal amplitudes, which are used to replace the desired waveform, such as a sine wave. PWM modulation can be achieved by designing a controller that performs overall pulse width modulation or without considering the control object model.
By adjusting the pulse width, i.e., changing the ratio of on-time to off-time, the average voltage can be altered, thereby achieving brightness control of the light. For example, as the duty cycle of the PWM signal increases, the on-time of the switching devices increases, resulting in a higher average output voltage and increased brightness of the light. Conversely, when the duty cycle of the PWM signal decreases, the on-time of the switching devices decreases, leading to a lower average output voltage and reduced brightness of the light.
Advantages: PWM dimming has a relatively simple structure, eliminates color shift issues, and is known for its energy efficiency and low heat generation.
Disadvantages: The main drawback is flickering. During PWM dimming, if the screen flickers 500 times per second, the flickering frequency of PWM is 500Hz. Generally, flickering is difficult for the human eye to perceive if the frequency exceeds 80Hz. However, it may be observed by using a smartphone camera pointed at the screen.
TRIAC Dimmer vs.0/1-10v
The main difference between 0-10V dimming and Triac/SCR dimming lies in the method used to adjust the brightness of LEDs. Both methods involve changing the current flowing through the LEDs since the current is directly proportional to the luminous flux. The larger the current, the brighter the LEDs, and vice versa.
Triac/SCR dimming utilizes the chopping function of the Triac or SCR to adjust the input voltage of the dimming driver, thereby altering the output current of the dimming power supply. On the other hand, 0-10V dimming involves using a 0-10V dimmer to provide a voltage ranging from 0 to 10V to the 0-10V dimming power supply, thereby changing the output current and achieving brightness adjustment.
Triac/SCR dimming has been widely used in the dimming of incandescent lamps and energy-saving lamps and is also a commonly used dimming method for LED lighting. Triac/SCR dimmers offer advantages such as high precision, high efficiency, compact size, light weight, and ease of remote control. They dominate the market, and most manufacturers produce dimmers of this type. The advantages of using Triac/SCR dimmers for LED lighting include low dimming cost, compatibility with existing wiring without the need for rewiring, and suitability for retrofit projects. However, Triac/SCR dimming has some disadvantages, including poorer dimming performance, limited dimming range, potential flickering issues due to compatibility between the dimming power supply and the dimmer controller, and the requirement for a minimum load for stable operation. When multiple lights are dimmed together, there may be interference between them.
On the other hand, 0-10V dimming power supplies are designed with control chips. When connected to a 0-10V dimmer, the power supply adjusts the output current based on the voltage variation of the 0-10V signal, achieving dimming. For example, when the 0-10V dimmer is set to 0V, the current decreases to 0, resulting in the light being off (acting like a switch). When the 0-10V dimmer is set to the maximum of 10V, the output current reaches 100%, and the brightness is at its maximum. Similarly, the 1-10V dimming principle follows the same concept, but the dimmer operates within the range of 1-10V, with a corresponding change in the output current.
It's important to note that 1-10V dimming does not have a switch function to completely turn off the lights. The advantages of 0-10V dimming include no compatibility issues between the dimming power supply and the dimmer, good dimming linearity, and stable performance. However, it requires an additional set of 0-10V signal wires, making it less suitable for retrofit projects.
