I. Importance of solar connectors in solar installations
A solar connectoris an electrical connector used in solar power systems to connect solar panels, inverters and other electrical components. Solar connectors play a key role in solar power systems by providing safe and reliable electrical connections for transmission and utilization of solar electricity. They are widely used in solar stations, solar photovoltaic systems and other solar applications.
II. MC4 Solar Connectors
A.Definition
The MC4 solar connector is a single contact electrical connector commonly used to connect solar panels." MC4" means "Multi-Contact, 4mm" and refers to the 4mm diameter contact pins.
MC4 connectors are typically used as a pair - a male (plug) and a female (socket) connector to form a watertight seal. Their design makes it easy to form a series connection of solar panels by manually pushing the connectors of neighboring panels into each other, but a tool is required to disconnect them to ensure that they don't accidentally disconnect when the cable is pulled.
These connectors can handle high voltages and currents, with typical ratings of 20 A and 1000 V. They are also extremely durable, waterproof, and resistant to UV rays and harsh weather conditions, making them suitable for outdoor use.
B.Advantages
MC4 solar connectors have many advantages that make them widely used in the solar industry:
Highly Compatible: MC4 connectors are the industry standard and are widely used in a variety of solar systems, making connections between different devices simple and consistent.
Durable and Reliable: Designed for use in outdoor environments, MC4 connectors are resistant to harsh weather conditions, including rain, intense sunlight, and extreme temperatures. They are also dust and UV resistant.
SAFETY: MC4 connectors are designed to prevent arcing and short-circuiting to ensure safe power transmission. In addition, they require a tool to disconnect, preventing the risk of accidental disconnection.
EFFICIENT: MC4 connectors are designed to minimize resistance and power loss, increasing the efficiency of power transmission.
Easy to use: MC4 connectors are easy to install and disconnect, making the installation and maintenance of solar systems easier.
MC4 connectors are the most common solar connectors in the solar industry because MC4 connectors are especially designed for solar applications and are waterproof and UV resistant for outdoor use.
C.Applications
MC4 solar connectors are widely used in various solar energy systems, including the following areas:
Home solar systems: In home rooftop solar systems, MC4 connectors are used to connect solar panels to inverters and between solar panels, allowing power to be safely and efficiently transmitted from the panels to the home grid.
Commercial and Industrial Solar Systems: In large commercial and industrial solar projects, MC4 connectors are used to build complex solar arrays and grid connections.
Solar Agriculture: In solar irrigation and other agricultural applications, MC4 connectors provide a reliable and durable solution for transmitting solar power to remote equipment.

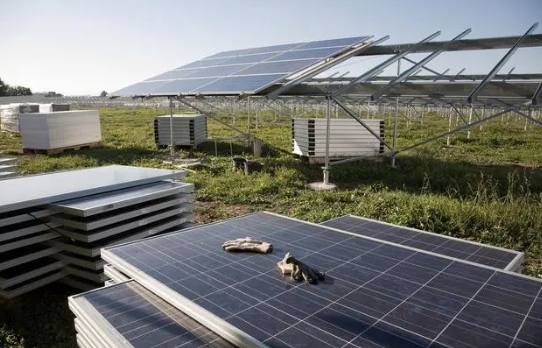

Solar Power Plants: In solar power plants, MC4 connectors are used to connect a large number of solar panels and inverters to produce power on a large scale.
Portable and Temporary Solar Systems: In portable and temporary solar systems, such as camping and emergency backup power, MC4 connectors provide a convenient and fast connection.
Overall, MC4 connectors have become an integral part of solar systems due to their durability, safety and compatibility.
III. Other types of solar connectors
A. MC3 Connector
The MC3 connector is a type of electrical connector that is widely used in solar energy systems. Similar to the MC4 connector, the MC3 connector is available in both male (plug) and female (receptacle) forms and can be paired to form a watertight seal.
The MC3 connector is designed a little differently than the MC4 connector in that the MC3 connector uses a rotary locking mechanism while the MC4 connector uses a push-pull locking mechanism. This means that MC3 connectors need to be rotated to be inserted and disconnected, whereas MC4 connectors are pushed straight in and pulled out.
MC3 connectors have been used less in the solar industry, mainly due to the fact that MC4 connectors offer more advantages; they are easier to use, more resistant to harsh weather, and more compliant with international standards. However, some older solar systems may still utilize MC3 connectors, so when upgrading or maintaining these systems, MC3 connectors may still be required.
B.Anderson Powerpole Connectors
Anderson Powerpole Connectors are plug and socket connectors that are widely used in electrical systems. They are often used in applications that require a fast, reliable electrical connection, such as automobiles, electric bicycles, radio equipment, etc. Their ability to handle high currents and availability in a variety of sizes and current ratings makes them ideal for use in solar energy systems as well.
While Anderson Powerpole Connectors are useful in many applications, MC4 connectors are more common in the solar industry.
