Let’s leave IRFZ44N aside as of now and see what a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is. The IRFZ44N belongs to the family of transistors that are mostly deployed for switching and amplifying power. If you are working on an electronics project, or you are learning electronics components, you are rightly here. In this article, you will learn all about IRFZ44N MOSFET.
Anyhow, just cut through the noise and let us guide you to why, how, and from where you can get it. To get these answers, read it all over till the end. We are hopeful that by the time you finish this article, you will have what you need to get IRFZ44N-MOSFET working right. Let’s begin with interpreting the MOSFET Code (IRFZ44N).

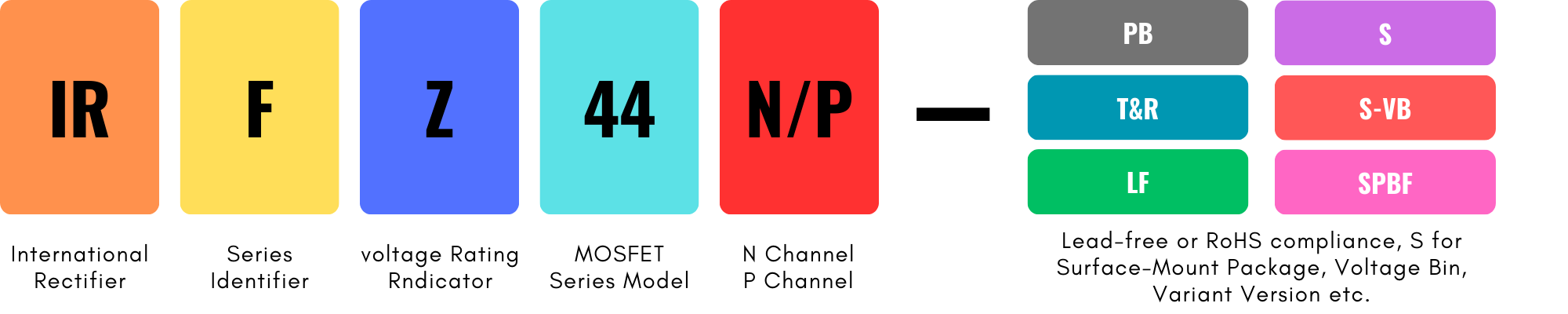

Understanding MOSFET’s Code Such as IRFZ44N
The IRFZ44N transistors specifically belong to the family an N-channel power MOSFETs (“N” at the end of code is for this purpose). It means that it is the kind of MOSFET that carries power and switches a ton of current (high current handling transistor). Its characteristic features involve the toughness and reliability to run the high current electronic devices. That is why it can make your electronics projects run like a dream if used correctly.
So, whether you’re controlling motors or switching loads, it can handle your required task with precision. If you've got a challenging build ahead and you need something dependable, this is your go-to component along with others

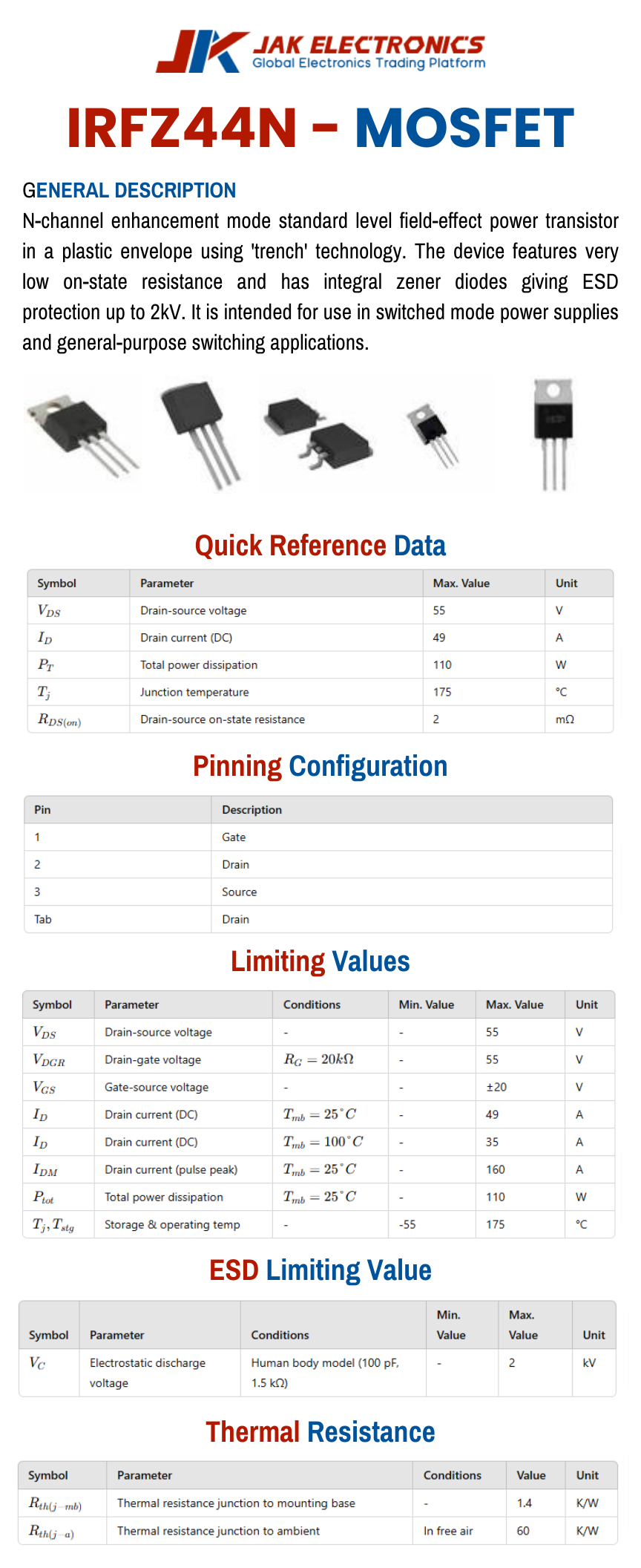

Detailed specifications of IRFZ44N MOSFET
You can explore the details for in-depth technical specifications. We have a quick go-through data sheet that you need to move ahead in this guide to learn about IRFZ44N.
The main information that is required to know can be summed up in just 3 points
1. Gate Threshold Voltage (VGS (th)) is how much voltage it takes to turn itself on. You can relate it to needing enough motivation to get out of bed, for IRFZ44N it is VGS (th).
2. RDS (on) is the resistance when this MOSFET is fully on. Resistance should be lower to make it efficient.
3. Max Drain Current (ID) is the maximum amount of current that it can handle. As mentioned previously, IRFZ44N can handle a large amount of current such as 49 amps.

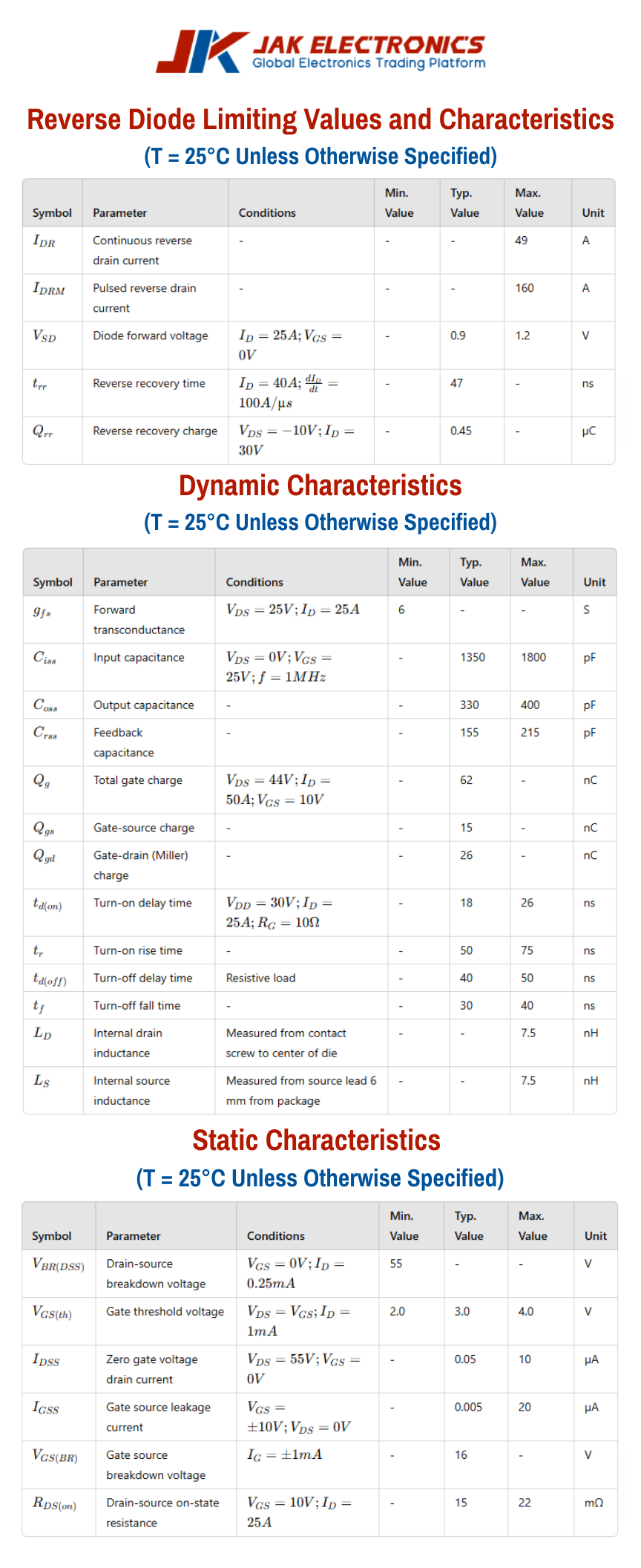

These technical specifications mentioned in the tables above make IRFZ44N suitable for high-power applications that require a huge amount of current to pass through. Once you know that your electronic circuit is capable of handling the fluctuations, you can use them with peace of mind. So, if you're ready to experience this reliability, make sure to add a few IRFZ44Ns to your toolkit.
The Pin Configuration and Functional Description of IRFZ44N MOSFET
Much of the information has been covered in the table charts above, from which you have learned that IRFZ44N MOSFET is made up of three pins named Gate (G), Drain (D), and Source (S). The Gate pin gets the signal to start the current flow just as opening of gate or valve, for the sake of understanding, and the current enters from the Drain (D) pin to leave from the Source pin to the device.
A well-functioning installation of IRFZ44N MOSFET always starts with an understanding of where will the current will flow and how you can control it effectively. This control factor is very crucial for large amount of current and that is why IRFZ44N is built. It makes it easy to control the flow of current without compromising on reliability.
Although it comes at a little more price, but if you’re serious about getting this right, your investment in quality components ensures that your projects will excel without re-investment and replacement.
Applications of IRFZ44N in electronic circuits
After learning all the above details, let us help you make known (if you are not sure) where it is usually used and why it matters to be so. IRFZ44N transistor is perfect for on/off switching circuits, as an instant flow of current is likely to occur while turning on an LED or switching a motor or any other component. Along with that, some people do use it for power amplification purposes, for which it serves best. Although it is not meant for power amplification it can be used.
Moreover, it is also known to be used for controlling DC Motors with precision. Along with this application, you can find various other usages that are difficult to cover here. You can find more specific information by visiting JAKElectronics.com
Integrating IRFZ44N into your projects
Let’s talk about how IRFZ44N can be used effectively for practical application. First of all, to integrate it into your circuit properly, you need to provide at least 10V to the Gate for it to open fully. A 3.3V microcontroller won’t cut it here, so you'll need a driver circuit to do this job.
Additionally, to ensure you don't fry your MOSFET because of large dissipation of heat due to huge amounts of current withdrawn, you need to follow best practices, such as always using heatsinks when dealing with higher loads. That is why you always need to remember that MOSFETs are very sensitive to static discharge, so it's crucial to touch something grounded before handling them. These measures will help you keep your components safe and functional.
We all know that the key to successful electronics projects always lies in proper integration. By using an IRFZ44N, you’re not just assembling a circuit; you're choosing smoother performance with fewer troubles. If you're fed up with components that can’t handle the load, it’s time to upgrade to an IRFZ44N MOSFET that meets your needs and can keep up with your project goals.
Thermal management and efficiency considerations
That frying of the circuit was mentioned in the previous section for a reason. IRFZ44N generate a large amount of heat just like those electronic components that let pass through a large amount of electric current. You need to manage the heat aka thermal management. Although MOSFETs are efficient they are not perfect for heat transfer on their own. They’ll get warm, and if you ignore thermal management, they’ll get fried. That is why you need to use heatsinks to dissipate heat properly.
This little investment in heatsinks will help you with the thermal management of these MOSFETs. Because the components that generate heat work efficiently when they are managed thermally to keep them as cool as possible. It is better to use heatsinks instead of letting costly repair work occur.
Troubleshooting common issues with IRFZ44N
Electronics are circuit-based things and the issues are common. As the issues are common, so are their solutions. So, if your MOSFET isn’t turning on, it could simply be that the gate voltage is too low and your circuit just is not getting enough current/voltage to operate properly.
If that is fine, overheating can also be a real issue because, without a proper heatsink, you risk burning out your components. Another common setback is incorrect pin connections, as mentioned in the above section about pin configuration, it's essential to triple-check every connection because mistaking the gate for the drain is like accidentally reversing your car into your garage door: it’s avoidable but can leave a dent in your progress.
These small but preventable setbacks can cost valuable time and energy. To minimize headaches, use reliably manufactured components. Stocking up on dependable parts now means fewer last-minute issues down the line. Why not get a couple extra today and stay prepared for whatever comes your way?
Final thoughts
The IRFZ44N is not a flashy piece of hardware. But it is reliable and powerful, and if you use it correctly, it will not create problems. It will let the right current in and keep your circuit in check. So, whether you're building a robot or just trying to control some LEDs, the IRFZ44N is one of those dependable MOSFETs.
To learn more about the data sheets, specific requirements as well as similar components, check the JAKElectronics.com
