PIC microcontrollers are powerful, compact chips from Microchip Technology, used in embedded systems. They combine a CPU, memory, input/output ports, and built-in peripherals like ADCs, PWMs, and communication modules (UART, SPI, I2C). With families like PIC16 and PIC18, they are versatile and suitable for applications like robotics, automation, artificial intelligence, embedded systems, instrumentation etc.
PIC microcontrollers are normally used to create real-life practical systems i.e., robots, temperature monitors, digital clocks, smart locks etc. PIC Microcontrollers add versatility to these projects and are thus popular among students, hobbyists, and even professionals for designing innovative, real-world applications.
In this article, you will find the top 10 PIC Microcontroller projects, their working principle, key components, features, and enhancements. Let’s start.

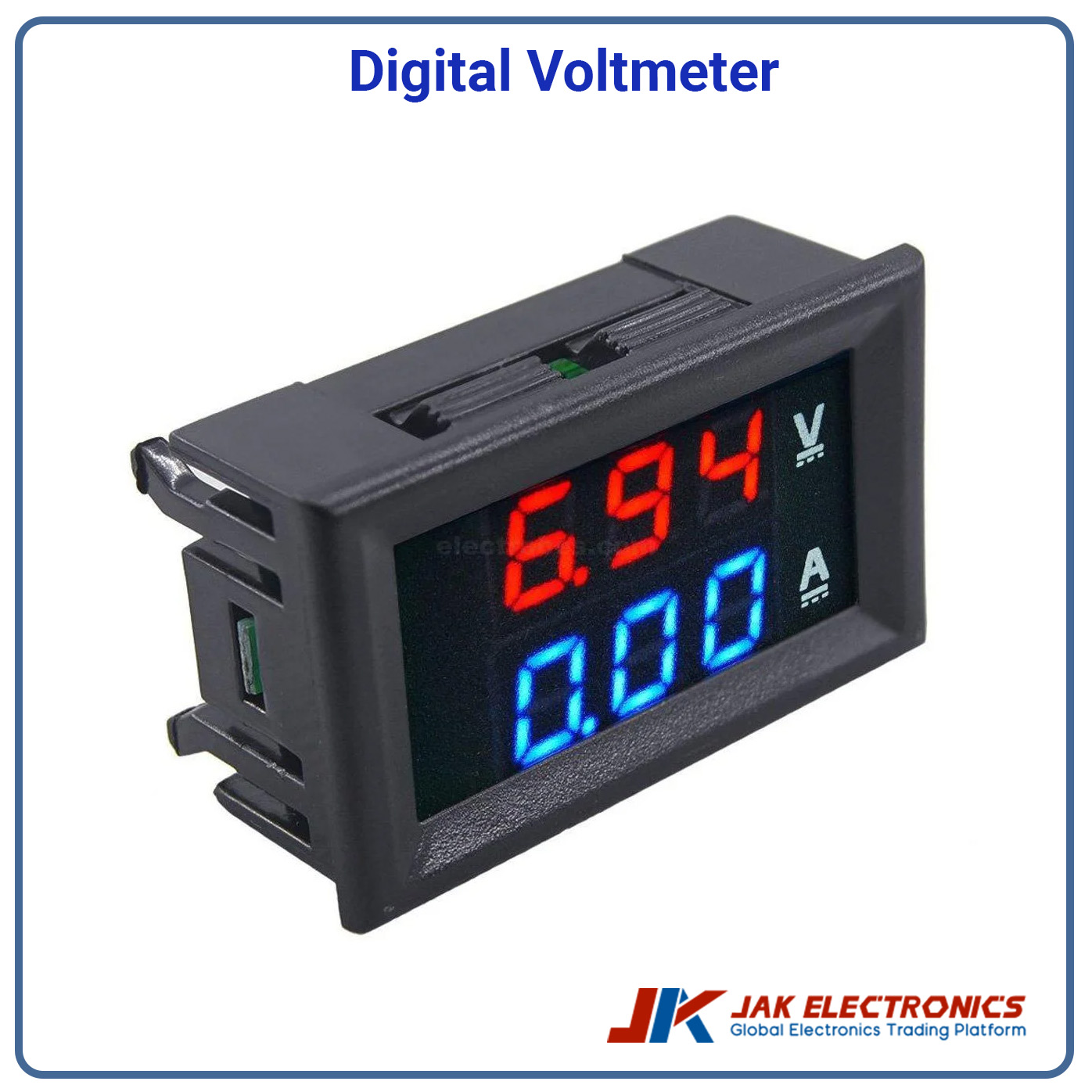

1. Digital Voltmeter:
A digital voltmeter is an instrument that measures the voltage of an electrical signal and then displays it. It has a digital output, making it easier to read than an analog voltmeter.
.jpg)
Key Components:
ADC (Analog-to-Digital Converter):
Converts the scaled analog voltage from the input into a corresponding digital value for the PIC microcontroller to process.
Microcontroller Firmware:
Handles data processing, range selection, voltage readings, and display updates, all programmed into the PIC microcontroller.
Calibration Process:
The measured voltage is compared with a known reference voltage. In case of discrepancy, the system needs to be adjusted.
Power Supply:
All the components, such as the microcontroller, LCD, and sensors, are supplied with power to function stably.
Range Selection Logic:
Users can change the different voltage ranges through the push button so that the system adjusts to various input levels.
Error handling:
Detects out-of-range voltages or sensor malfunctions and alerts the user with a message on the LCD.
Accuracy and precision:
Proper calibration and reference of voltage, it is indispensable for ensuring reliability across different input voltages.
Working:
● The input voltage is attenuated by using the voltage divider, and it falls in the range of input of ADC.
● The PIC microcontroller reads this voltage and converts it into digital form using its ADC module.
● The digital value thus obtained is then shown on the LCD in terms of its corresponding voltage.
● The system can include the selection by push buttons, measuring different levels of voltages to high accuracy.
Main Features:
● Auto Range Selection: It involves automatic selection based on the voltage range from the input voltage.
● Calibration: This is possible due to the user's calibration for proper measurement of the voltages.
● High Accuracy: This can be done using a quality ADC as well as the reference voltage stabilizes.
● Low Power Consumption: It is especially suited for use in portable as well as in applications running through the battery.
● Compact Design: It can be achieved as a voltmeter into a small-sized, user-friendly device.
Possible Enhancements:
● Wireless communication - Bluetooth or WI-Fi for remote monitoring.
● Save the voltage over time and obtain data logging values to analyze for tracing trends.
● Make use of high-resolution ADC which will give increased accuracy in voltage measurement.

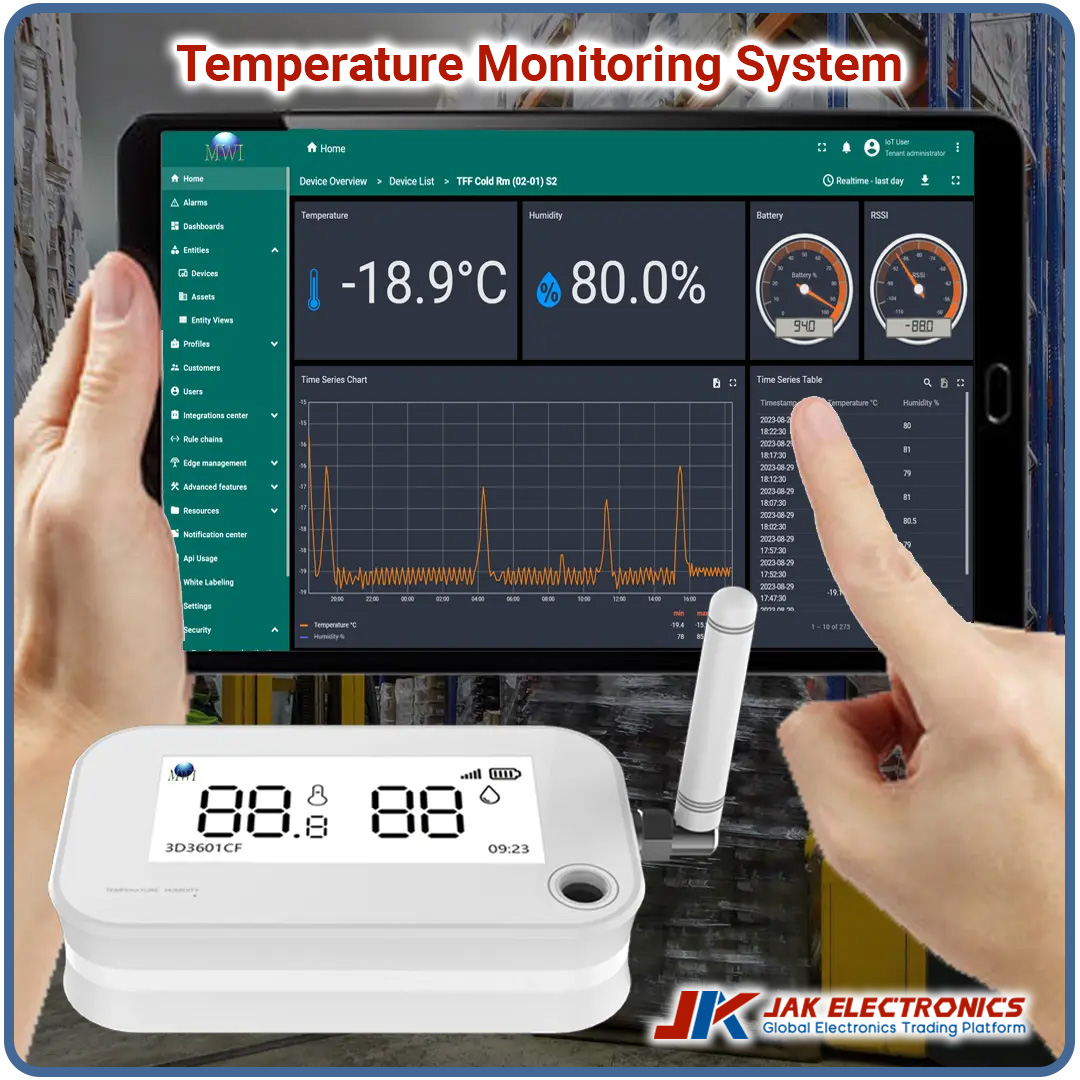

2. Temperature Monitoring System:
This is a temperature monitoring system that measures and displays real-time temperature readings, perfect for industrial, agricultural, or weather monitoring applications. It ensures accurate measurements and gives an alert whenever temperature thresholds are surpassed to ensure safe and efficient operation in environments where temperature control is essential.
.jpg)
Key Components:
PIC Microcontroller (for example, PIC16F877A):
This is what will process data from the temperature sensor and handle the LCD, buzzer, or LED.
Temperature Sensor (for example, LM35 or DHT11):
It detects ambient temperature and then converts it to an electrical signal. The former gives an analog voltage, whereas the latter offers a digital signal.
LCD Display:
It displays temperature in real time either in Celsius or Fahrenheit.
Buzzer/LED:
Warns using both audio and visual methods, as when temperature readings are greater than preset limit values.
Working Principle:
The ambient temperature is read through the sensor LM35, which converts it into the corresponding analog signal. This analog signal is then processed by the microcontroller of the PIC. It gives a digital value for temperature, which is then displayed through the LCD screen. A buzzer or LED may be activated as an alert device for the user if the threshold for temperature surpasses the predefined limit.
Main Features
● Real-Time Monitoring: It measures and continually shows temperature readings in real-time.
● Alert System: An alert through a buzzer/LED is activated in case temperatures are beyond threshold levels, thereby helpful in large industrial setups.
● Calibration: Calibration is possible so that sensors work for higher sensitivity and accuracy values to increase system reliability.
● Multi-Point Sensors: The system can accommodate multiple temperature sensors, allowing for multi-point monitoring in larger or diverse environments.
● Long-Range Detection: Attach Wi-Fi or Bluetooth wireless modules to allow the temperature data to be transmitted miles away to a device such as a smartphone.
Potential Improvements:
● Humidity Sensing: Include a humidity sensor like DHT22 to provide an all-weather station measuring both temperature and humidity.
● Wireless Transmission: Enable Wi-Fi or Bluetooth on the device to send the data to a smartphone to be viewed and accessed from any location in the world.
● Data Logging: Store the temperature readings over long periods for historical analysis that can be used to detect trends, maintenance schedules, or even scientific research.

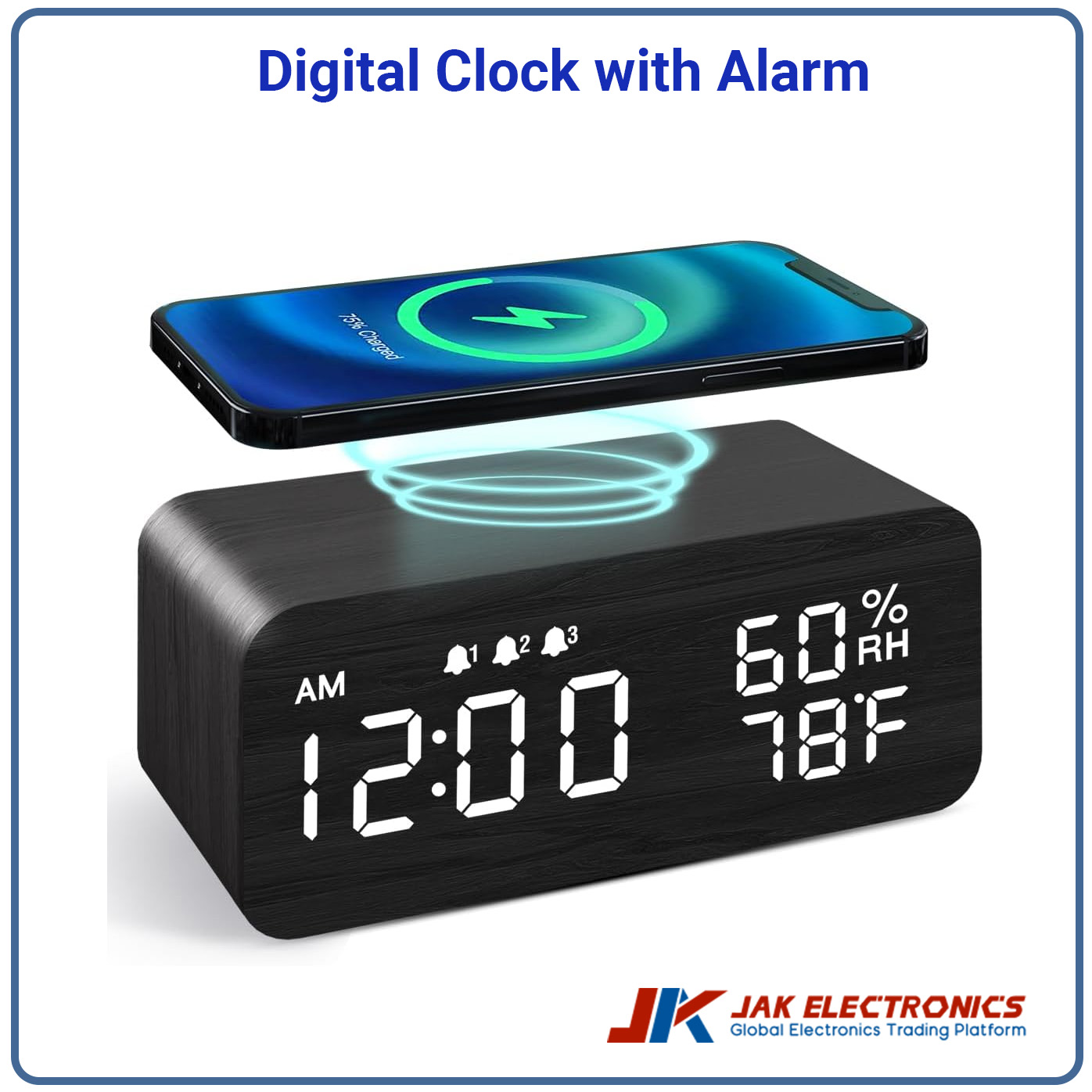

3. Digital Clock with Alarm:
The Digital Clock with Alarm project gives real-time timekeeping and an automatic alarm system that is quite useful in a home or office. It can also be an educational tool to interface a real-time clock module with a PIC microcontroller and to understand the functionality of a time management system.
.jpg)
Key Components:
PIC Microcontroller:
It controls the clocks, compares it with the time set for an alarm, and controls the buzzer.
RTC Module (e.g., DS3231):
It offers precise timing in terms of day, hour, minute, and second.
LCD Display:
It will display the current time in a convenient format, like 24 hours or 12 hours.
Keypad/Push Buttons:
For the setting of the time, an alarm, or other configurations.
Buzzer:
Only activates the alarm whenever the set time matches the current time.
Working Principle:
The DS3231 Real-Time Clock (RTC) module continuously tracks the time and sends it to the PIC microcontroller. The PIC then compares the received time with the set alarm time. If these two times coincide, then the buzzer gets activated. The LCD will display the present time. Using the keypad or push buttons, users may also set their desired alarm time. The system provides multiple alarms, and its snooze feature is customizable.
Key Features:
Real-Time Clock:
It does not lose accuracy because of its use of the RTC module's battery backup in case the power fails.
Multiple Alarms:
Users may input different alarms depending on the kind of event to be performed or the times needed.
Alarm Features:
Customizable alarm sounds and adjustable snooze functionality.
24-Hour Format:
Ability to switch between 12-hour and 24-hour time formats.
Easy-to-use User Interface:
Simple, intuitive buttons or keypad for easy time and alarm setting.
Potential Enhancements:
● Wireless Control: Installation of Bluetooth or Wi-Fi to permit remote control of the clock and alarm.
● Voice Feedback: Installation of voice features to enhance user experience, such as "Good Morning" or "Time to Wake Up."
● Touchscreen Interface: A touchscreen interface could offer a much more interactive means of control over time and alarm settings.

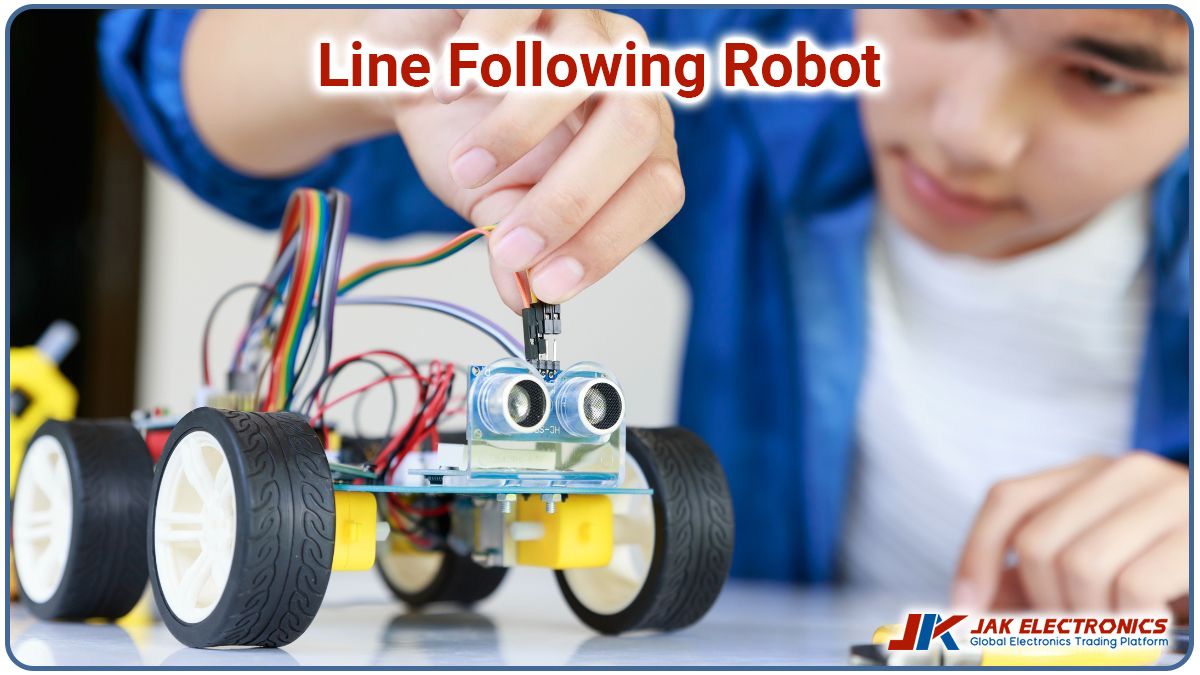

4. Line Following Robot:
An autonomous robot in the Line Following Robot senses, detects, and follows a black line drawn across a white base. The above project gives crucial ideas related to robotics: interfaces with sensors and motors as well as the core algorithms to self-navigate itself.
.jpg)
Key components:
PIC Microcontroller:
In charge of robot control logic and related decision-making process of the robot.
IR Sensors:
Use the reflected infrared light to read the black line and give an output to the microcontroller to act accordingly
DC Motors and Motor Driver (e.g., L298N):
It controls how the robot should move, making adjustments in direction and speed from sensor inputs.
Chassis:
These are the platforms that hold all the contents of the robots.
Working:
The system works by scanning the floor via IR sensors fitted on the bottom of the device. The sensors measure the difference in light reflection between the white surface and the black line. This feedback is transmitted to the PIC microcontroller, which processes this data and adjusts the speed and direction of the DC motors. In case the robot deviates from the line, the motors are adjusted to bring it back to the line. The system would be improved for better navigation optimization and smoother turning and straight motions with the assistance of control algorithms such as PID (Proportional-Integral-Derivative).
Features:
Automatic Navigation:
Through sensor data-based continuous path updates, the robot will follow along the line of track without operator intervention.
Real-Time Sensor Feedback:
The robot keeps reading sensor feedback in real-time and adjusts its movement accordingly while on track to avoid deviation.
Obstacle Avoidance:
Combining it with ultrasonic sensors may enable it to sense and avoid obstacles while navigating along the line.
PID Control:
Allows for smoother and more precise control as motor adjustments for turning and speed can be fine-tuned.
Compact Design:
As it is small and modular in design, the robot could fit in with many different platforms and kits available in education.
Possible Enhancements:
● Obstacle detection and avoidance can be implemented using ultrasonic sensors, making the robot follow the line by detecting and avoiding obstacles in its path.
● The integration of Bluetooth or Wi-Fi will allow manual override or remote control.
● Integrating cameras or computer vision techniques will make it possible for the robot to detect more complex lines, and objects, or even recognize its environment for enhanced functionality.
5. Home Automation System:
Home Automation System is a system that allows any user to remotely control household appliances like lights, fans, and doors with the use of a smartphone or computer. This system provides convenience, energy management, and enhancement of general life experience through remote monitoring and control of various devices.
.jpg)
Key Components:
PIC Microcontroller:
Manages the control of appliances as well as analyzing commands from the wireless module.
Relay Modules:
These modules connect the microcontroller with the appliances, thus allowing switching devices on and off.
Bluetooth/Wi-Fi Module (e.g., ESP8266):
This module connects the microcontroller to mobile devices to perform wireless control.
Smartphone App:
this is the interface with the user where one can control the system from the smartphone.
Working:
It transmits orders through Bluetooth or Wi-Fi modules and receives them on the PIC microcontroller side, which responds with the specific action of controlling relay modules on corresponding household appliances and turning them on or off, as necessary. The smartphone application sends out the signals, while the microcontroller interprets the command and sends them to corresponding household appliances.
Key Features:
Some other features are provided as follows:
Remote Control:
It allows to use of all these appliances using smartphone apps.
Energy Savings:
On/off times will be given as per one schedule to reduce electrical energy.
Multiple Devices Control:
The appliances can control multiple at a single time and all time individually also whenever required.
Voice Integration:
Voice Assistant control appliances will be controllable with all voice assistants through Amazon Alexa as well as with Google Assistant.
Status Feedback:
Provides instant feedback, so users know with a notification what is happening with their appliances.
Possible Improvements:
● Automated Scenes: Create custom scenes such that multiple devices get actuated in sequence at one time like "Good Morning" affecting lights, curtains, and coffee machines.
● Security Features: Provide a sensor like motion detectors or cameras that can automate lights or an alarm for home security.
● Scheduling: Set time-based automation for devices, ensuring they operate at predefined schedules, even when you're not home.
6. Password Protected Door Lock:
This lock is a password-protected door lock. A lock that has been designed in a way such that one can open it only if a password has been input into a keypad connected with a servo motor.
.jpg)
Key Components:
● PIC Microcontroller: Control of input password and lock
● Keypad: Input password
● Servo Motor: Opens door only when the correct password is entered.
● LEDs/Buzzer: It gives visual and audible feedback on whether the password is correct or wrong.
Working Principle:
● The user enters the password through the keypad. The PIC microcontroller reads this and compares it with the stored password.
● If correct, the servo motor rotates to unlock the door. If incorrect, the buzzer buzzes and the LED flashes red.
● The system can store many passwords for different users.
Key Features:
Security:
Password access does not allow intruders in.
Multi-User Support:
Store many passwords for multiple users.
Real-Time Feedback:
Gets immediate visual and auditory feedback on success or failure to enter the correct password.
Ease of Use:
Simple keypad input of a password
Low Power:
Operate off of a battery. It is perfect for use in mobile or stand-alone installations.
Potential Additions:
● RFID or Biometric: Get rid of the keypad altogether and instead offer RFID or fingerprint reader access.
● Remote Control: Work through a remote via Bluetooth or Wi-Fi
● Time of Day: Grant access at set times.

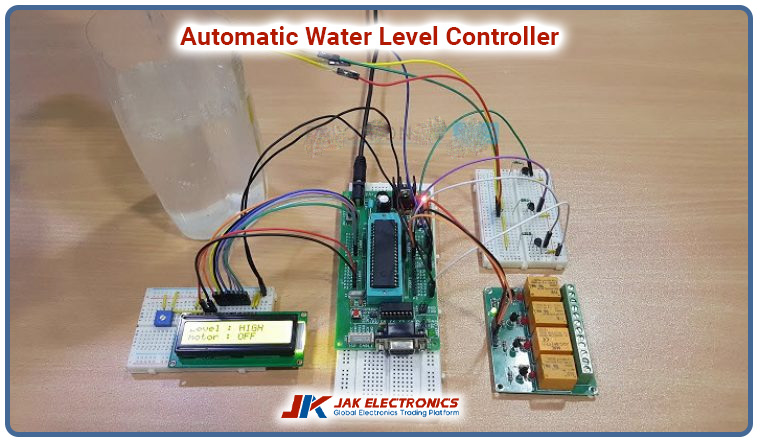

7. Automatic Water Level Controller:
It automatically fills or drains a water tank to maintain the optimal water level. It prevents overflows or dry tanks.
.jpg)
Key Components:
● PIC Microcontroller: Monitors water levels and controls the pump.
● Water Level Sensors (e.g., Float Switches): It detects water levels in the tank.
● Relay Module: Switches the pump on/off.
● Buzzer/LED: It will alert when the water level is too high or low.
Working Principle:
Water level sensors will supply input for measurement to a tank. Accordingly, PIC-based microcontroller switch pump 'On/Off' condition through relay circuitry. A buzzer or LED provides an alert when the water reaches a predefined critical level (either too high or too low).
Key Features:
Operation Self-automatic controls regulate levels within this system. This deployment draws the power of the least amount of End.
Water Saving:
Overflows are avoided and thus save water.
Alarm System:
The buzzer or LED gives warnings of high and low water levels
Scalability:
It can easily monitor more than one tank
Improvements:
● Remote Monitoring: Send water level data via Wi-Fi, and GSM to any smartphone or cloud server.
● Multi-Tank Management: Monitor several water tanks simultaneously
● Time-based: It schedules refills and drain tanks based on time
8. Smart Water Irrigation System:
The smart irrigation system makes the plants automatically watered using soil moisture level, weather conditions, or day-to-day basis so that the proper use of water is done.
.jpg)
Main Components:
● PIC Microcontroller: It controls the irrigation process through sensor data.
● Soil Moisture Sensor: It measures the moisture content in the soil.
● Relay Module: It is used to control the water valve for irrigation.
● LCD Display: It shows real-time soil moisture levels.
Working Principle:
● The soil moisture sensor checks if the soil is dry or moist.
● The PIC microcontroller monitors the water content and hence controls the irrigation valve.
● Time-activated irrigation can also include an inbuilt timer to water during specific hours when evaporation could be avoided in the early mornings and evenings.
Features:
Automatic Watering:
Automatically waters plants based on the moisture levels in the soil.
Saves water:
Prevents overwatering by giving precisely what is needed
Energy Saver:
Runs through solar energy or low-power design.
Scalability:
It is possible to have control over irrigation zones or different gardens.
Notifications:
The device sends alerts every time the system is on and when the moisture is too high or low.
Potential Improvements:
● Weather Integration: Integrate data from weather for instance rainfall to self-adjust the timing of watering schedules.
● Mobile Control: Using Wi-Fi or Bluetooth
● Data Logging: Simply water data logging that will be analyzed over time.

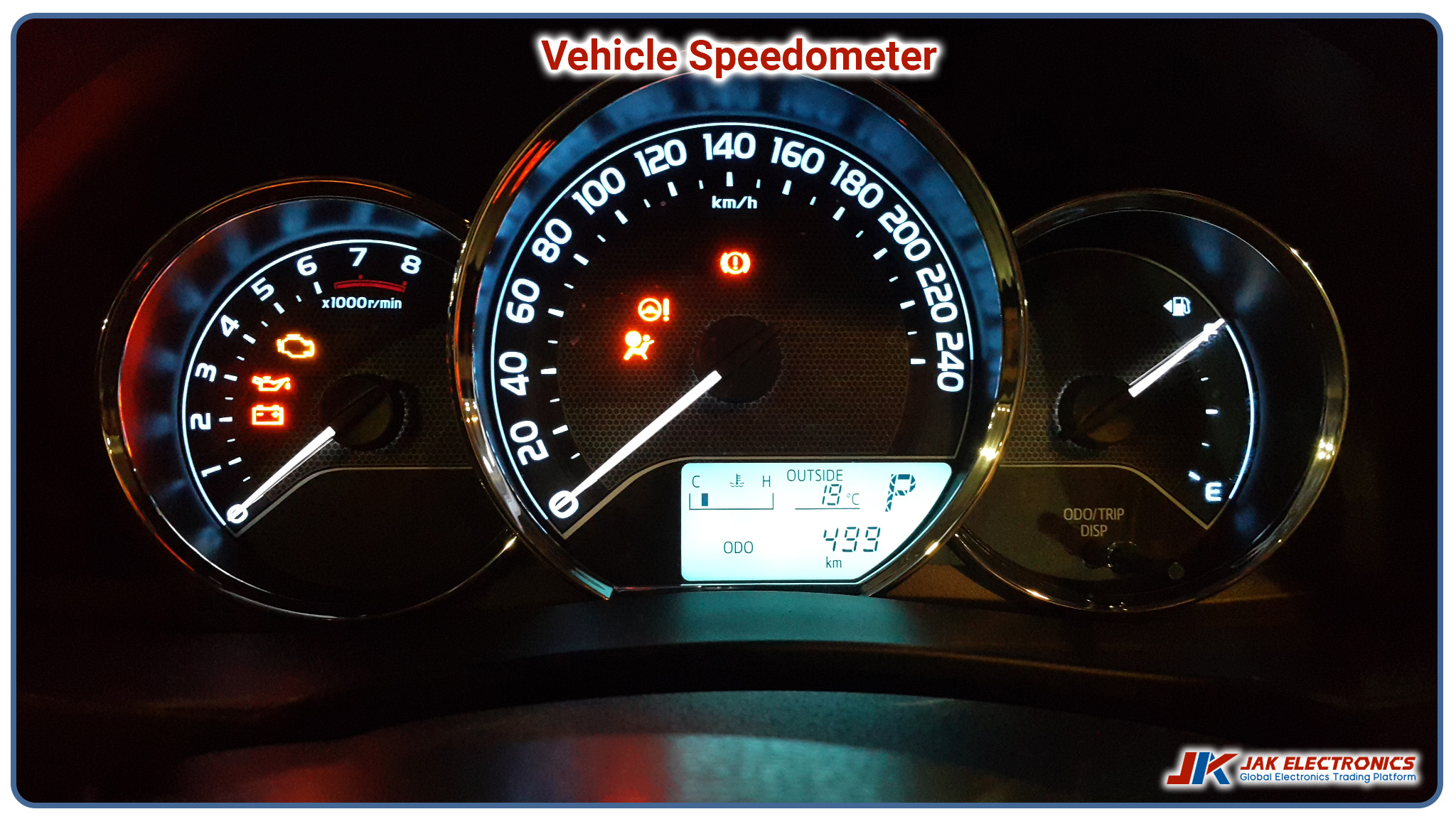

9. Vehicle Speedometer:
This system uses a speedometer and a PIC microcontroller as it calculates the speed from sensors that measure the rotation to give the exact speed of the vehicle.
.jpg)
Key Components:
● PIC Microcontroller: Data processing of computing for the speed.
● Optical or Hall Effect Sensors: To detect the rotation of the wheel or the vehicle.
● LCD or LED Display: It displays the computed speed in real time.
● Relay or Buzzer: It sends an alert when the set limit has been exceeded.
Working Principle:
● The sensor can measure the wheel rotation and create pulses.
● PIC Microcontroller is responsible for the number of pulses received within a specified time frame, which helps it calculate speed.
● The speed gained is displayed either in miles per hour or in kilometers per hour.
Key Features:
Real-Time Speed Monitoring:
It gives a real-time indication of speed due to continuous measurement through the vehicle.
Accuracy:
Precise calibration allows it to be more accurate at the job
Over-speed Alert:
A Buzzer sound is activated if a certain speed is crossed.
Multiple Display Units:
The speed can be displayed in MPH or KPH depending on preference.
Potential Upgrades:
● GPS: Utilize GPS information for better speed readings.
● Trip Log: Tracks distance and average speed for a trip.
● Bluetooth: Transmits speed information to a mobile app for detailed reports.
10. Heart Rate Monitoring System:
A heart rate monitor measures the heart rate of an individual in real time, which is helpful for fitness tracking and health monitoring.
.jpg)
Key Components:
● PIC Microcontroller: Controls the sensor, and the heart rate is calculated.
● Pulse Sensor: It measures pulse rate based on how light reflects from the blood flow.
● LCD Display: The heart rate is displayed in BPM (beats per minute).
● Buzzer: That can alert when the heart rate goes above or below a certain set threshold.
Working:
The pulse sensor detects changes in the blood flow and transforms them into a pulse signal.
The PIC microcontroller will count pulses in a period to obtain the heart rate.
The BPM heart rate is viewable in real-time using the LCD.
Important Features:
Heart rate monitoring:
Continuously monitors heart rate in real-time.
Health warning:
It gives an alert whenever the heart rate crosses over a certain threshold value.
Portable:
The system is wearable on the wrist or chest.
Battery Operated:
The product is a battery-operated one. Hence, portability and long battery life are built into the device.
Potential Add-ons:
● Short-range wireless data transfer: transfer data to smartphone or cloud services.
● Multiple Users: heart rate monitoring of more than one person in a single observation.
● Data Logging: record patterns of heart rates for health research over time.
Conclusion:
PIC microcontroller projects provide a flexible basis for developing innovative and practical applications in many domains, such as home automation, robotics, healthcare, and environmental monitoring. Starting from simple devices like digital voltmeters and temperature monitors to complex systems like smart irrigation and password-protected door locks, these projects reflect the flexibility and efficiency of PIC microcontrollers. Their features such as built-in ADCs, timers, and serial communication make them ideal for integration with sensors, displays, and actuators. The skills in embedded systems, circuit design, and programming will be gained through the building of these projects for learners and engineers, paving the way for advancements in automation, IoT, and smart technologies.
